Aluminium Wall Panel External Corner Trim

Share
Categories	Panel Profile
Brand	DYM Tile Trim Manufacturer
Model	DYM-P-203
Profile Structure	90° External Corner
Length	2.5m/ 2.7m or Customized
Colors	Silver, Matte Black, Champagne Gold, Custom RAL
Finish	Anodized / Powder Coated / Brushed
Material	Aluminum Alloy 6063-T5
Suitable Panels	PVC, WPC, SPC, Fluted & Decorative Wall Panels
Thickness	0.8mm – 2.0mm (customizable)
Surface treatment	Anodized / Brushed / Matte / Polished
OEM&ODM	Custom Profile / Size / Finish / Packaging
FOB port	foshan\shenzhen\guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union, T/T

Contact Now

Add to Wishlist

Detail Information

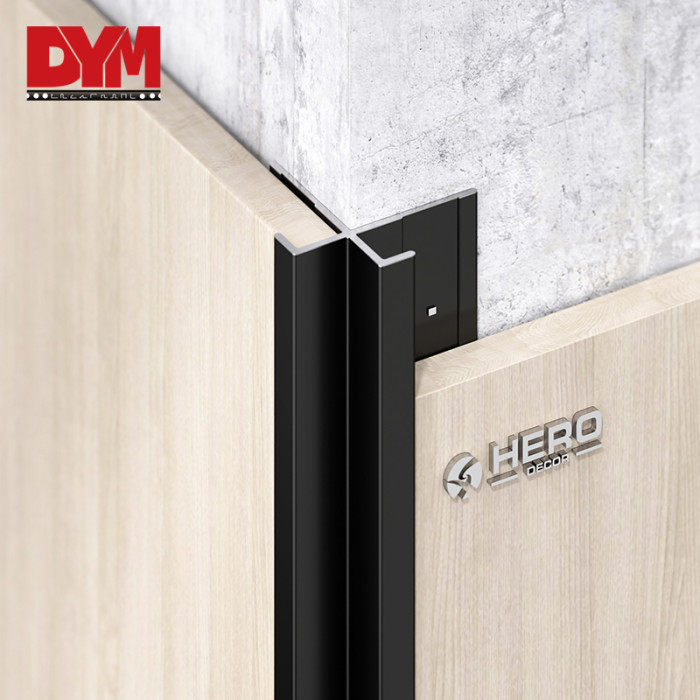

DYM-P-203 Aluminium Wall Panel External Corner Trim

Product Overview

Aluminium Wall Panel External Corner Trim is an architectural aluminum profile designed for clean and durable finishing at external 90° corners of wall panel systems.

Manufactured from 6063-T5 aluminum alloy, the profile covers and protects exposed panel edges where two wall surfaces meet, creating a straight, consistent corner line. It is suitable for PVC, WPC, SPC, fluted, wood and other decorative wall panel systems.

An external corner is one of the most visible and exposed areas of a wall panel installation. A properly designed aluminum corner profile helps control panel alignment, protect vulnerable edges and provide a professional transition between two wall surfaces.

The profile can be produced in different dimensions and configurations to match the actual panel thickness and installation structure. It can also be coordinated with aluminum edge trims, internal corner profiles, H joining profiles and end trims for a complete wall panel finishing system.

Specifications

The external corner trim is available in L, V, U and customized profile structures, depending on the panel construction and required corner detail.

Common panel-fitting sizes include 6 mm, 8 mm, 10 mm, 12 mm and 15 mm, with customized dimensions available for special wall panel systems.

Standard profile lengths are typically 2.5 m or 2.7 m, while customized lengths can be produced according to project requirements, packaging specifications and transportation conditions.

For large commercial or residential projects, matching profiles can be developed to maintain consistent dimensions, corner geometry and finishing throughout the wall panel system.

CODE	DYM-C-001	DYM-C-002	DYM-C-003	DYM-C-004	DYM-C-005
MM	5	8	10	12	15
G	0.121	0.123	0.126	0.129	0.134

Color Options or Customized

DYM supports OEM and ODM production for importers, distributors, contractors and wall panel brands. Available surface finishes include anodized, brushed, matte, polished and powder-coated aluminum.

Common colors include silver, black and gold, while custom RAL colors can be developed to match specific wall panel collections, interior designs or brand requirements.

Matte Finish

Offers a low-reflective surface, ideal for a modern and minimalist look.

Polish Bright

Features a high-gloss surface, enhancing visual brightness and texture.

Brushed

Provides a fine-textured effect, adding tactile and visual depth.

Coating Texture

Available in various colors and textures to suit different design requirements.

Installation Guide

Position the external corner trim over the two intersecting wall panel edges and align the profile vertically along the outside corner. Secure the profile and wall panels according to the selected installation system, ensuring that both panel surfaces remain properly aligned.

The receiving section should be matched to the actual wall panel thickness to achieve a stable fit and consistent corner line. For custom profiles, sample testing is recommended before mass production.

Applications of Wall Panel Inside Corner Trim

DYM can manufacture matching internal corner trims, edge trims, end trims and H joining profiles, allowing customers to develop a complete aluminum wall panel profile system from a single OEM source.
