Aluminum External Corner Trim For Wpc Wall Panels

Share
Categories	Panel Profile
Brand	DYM Tile Trim Manufacturer
Model	DYM-P-203
Profile Structure	External Corner / 90° Corner
Length	2.5m/ 2.7m or Customized
Colors	Silver, Matte Black, Champagne Gold, Custom RAL
Finish	Anodized / Powder Coated / Brushed
Material	Aluminum Alloy 6063-T5
Suitable Panels	WPC Wall Panels / Decorative Wall Panels
Thickness	0.8mm – 2.0mm (customizable)
Surface treatment	Anodized / Brushed / Matte / Polished
OEM&ODM	Custom Profile / Size / Finish / Packaging
FOB port	foshan\shenzhen\guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union, T/T

Contact Now

Add to Wishlist

Detail Information

DYM-P-203 Aluminium Wall Panel External Corner Trim

Product Overview

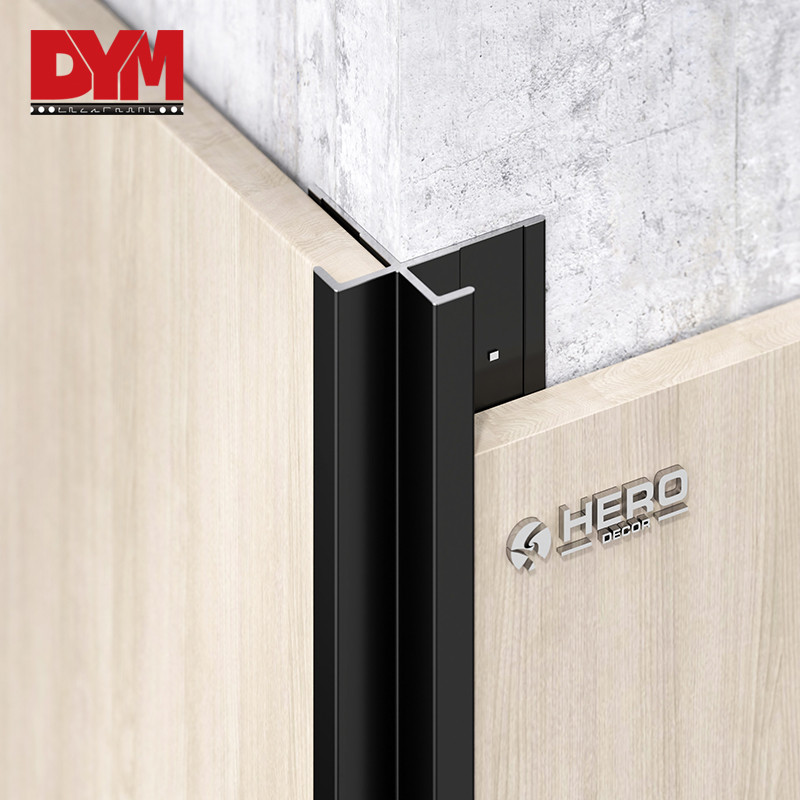

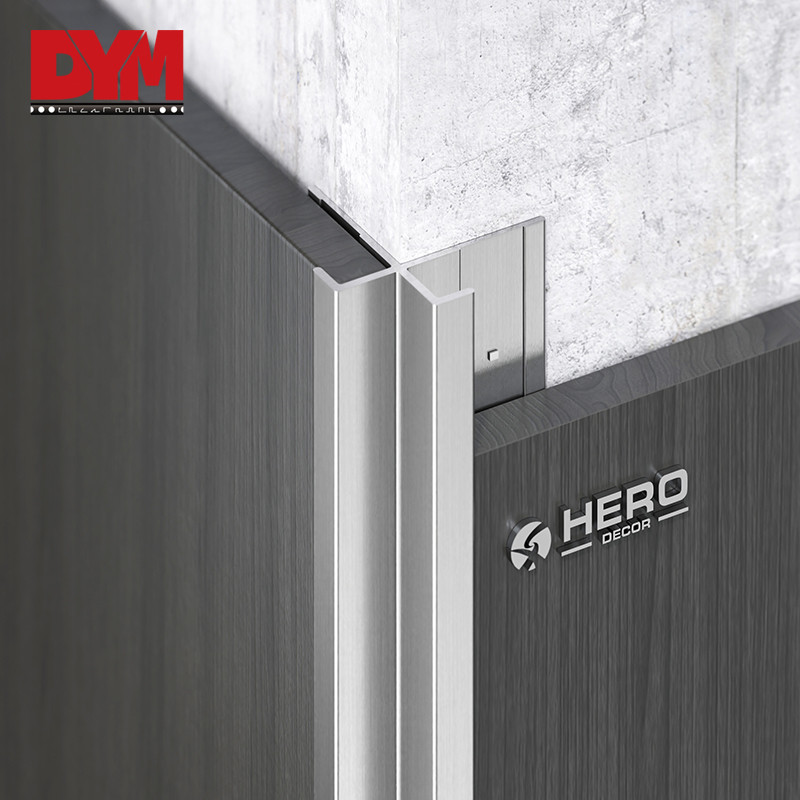

Aluminum Trim for WPC Wall Panels is an external corner profile designed for clean and consistent finishing where two WPC wall panel surfaces meet at an outside 90° corner.

Manufactured from 6063-T5 aluminum alloy, the profile covers exposed WPC panel edges and creates a defined external corner line. It also helps protect vulnerable panel edges from impact and provides a more controlled transition between two wall surfaces.

The external corner profile is suitable for WPC decorative wall panels used in residential, hospitality and commercial interiors. Its dimensions can be customized according to the actual panel thickness, corner structure and installation requirements.

For wall panel manufacturers, distributors and project contractors, the profile can be coordinated with matching edge trims, internal corner trims and joining profiles to create a complete WPC wall panel finishing system.

Specifications

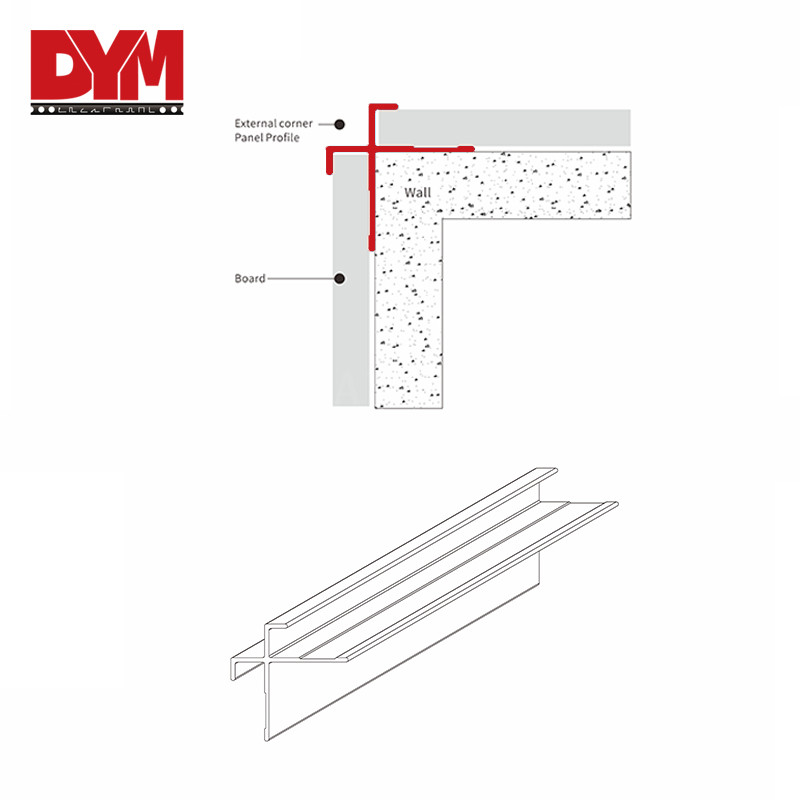

This WPC wall panel trim uses an external corner profile structure specifically designed for outside 90° wall transitions.

The receiving sections can be adjusted according to the WPC panel thickness, allowing the aluminum profile to accommodate different panel systems and installation structures.

Standard lengths include 2.5 m, 2.7 m and 3 m, while custom lengths and dimensions are available for specific projects.

The profile can be supplied with different edge widths, receiving depths and corner dimensions according to CAD drawings, technical specifications or physical samples.

CODE	DYM-C-001	DYM-C-002	DYM-C-003	DYM-C-004	DYM-C-005
MM	5	8	10	12	15
G	0.121	0.123	0.126	0.129	0.134

Color Options or Customized

Surface treatments include anodized, brushed, matte, polished and powder-coated finishes.

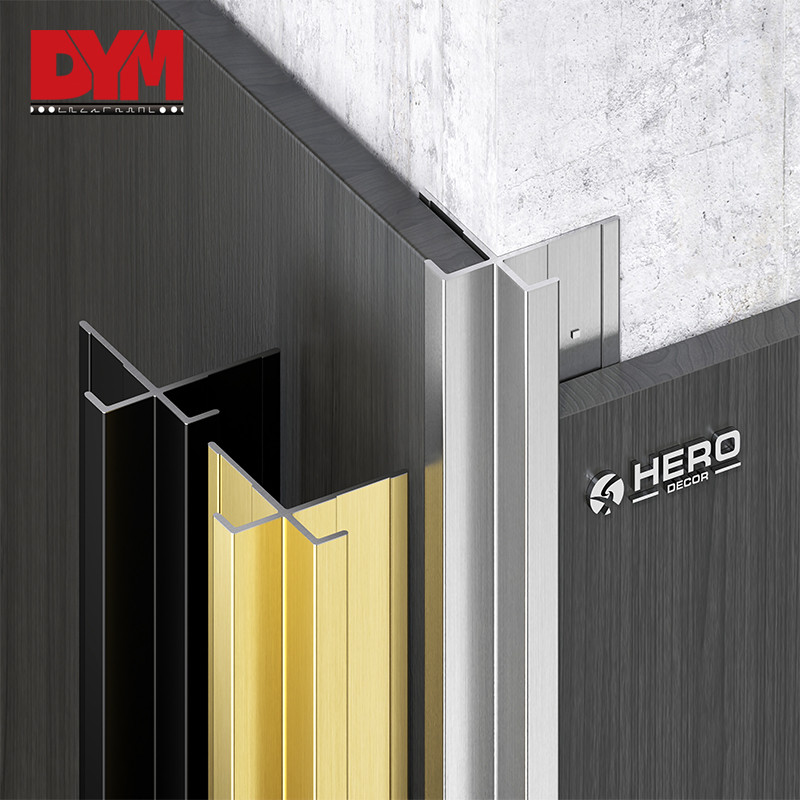

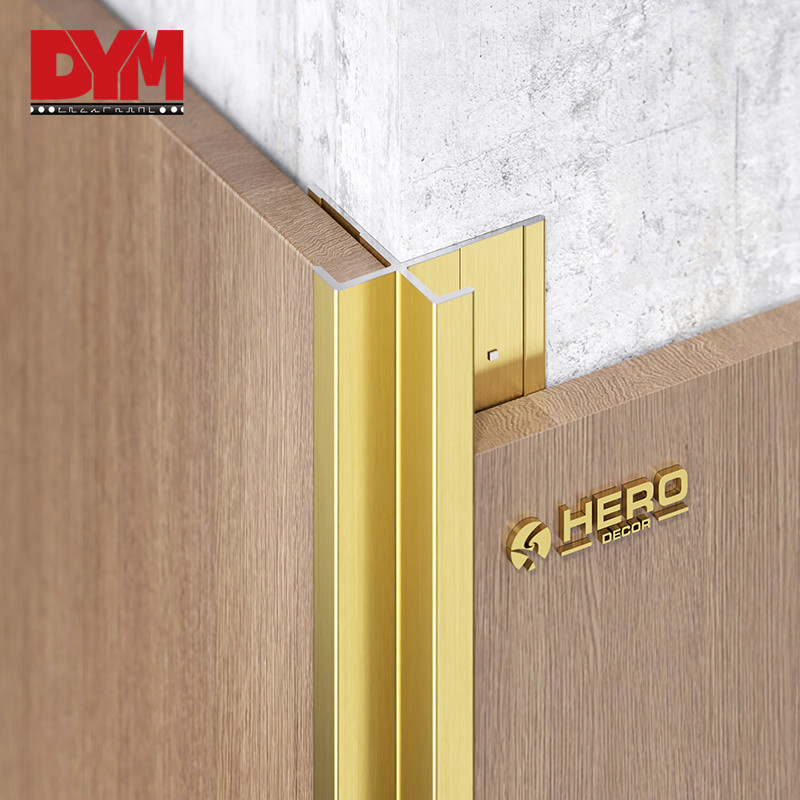

Available colors include silver, black, gold and champagne, with custom RAL colors available for specific WPC wall panel collections and interior projects.

Matte Finish

Offers a low-reflective surface, ideal for a modern and minimalist look.

Polish Bright

Features a high-gloss surface, enhancing visual brightness and texture.

Brushed

Provides a fine-textured effect, adding tactile and visual depth.

Coating Texture

Available in various colors and textures to suit different design requirements.

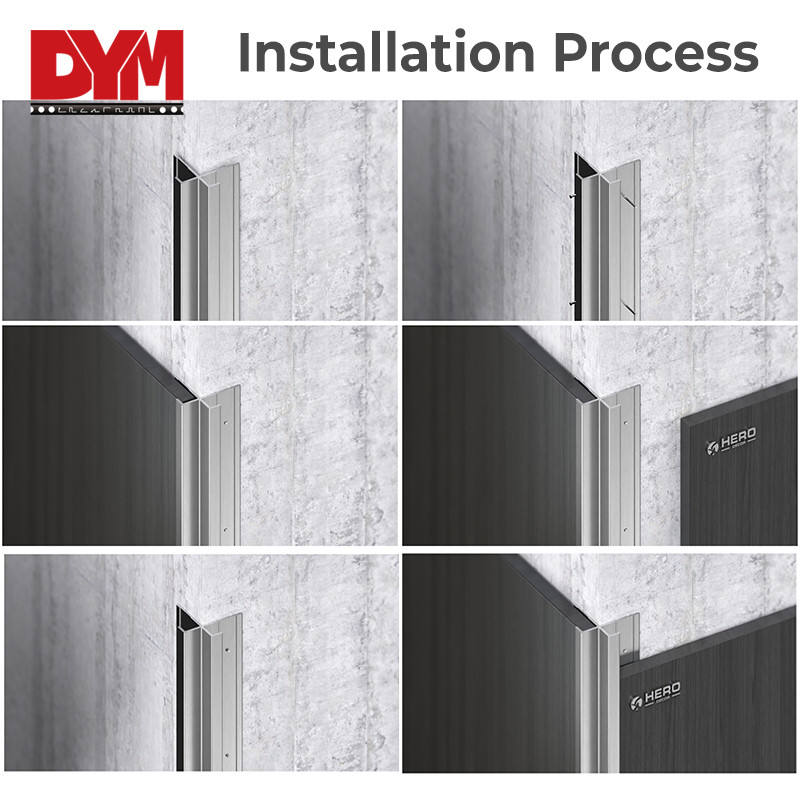

Installation Guide

Position the external corner profile over the two intersecting WPC wall panel edges and align the profile vertically along the outside corner.

Secure the profile and panels according to the selected installation system, ensuring that both panel surfaces are properly aligned and the external corner remains straight.

The receiving section should be matched to the actual WPC panel thickness. For customized profiles, sample fitting is recommended before bulk production.

Applications of Wall Panel Inside Corner Trim

DYM can manufacture matching WPC wall panel edge trims, internal corner trims, H joining profiles and end profiles, helping customers develop a coordinated aluminum profile system for their WPC wall panel product range.
