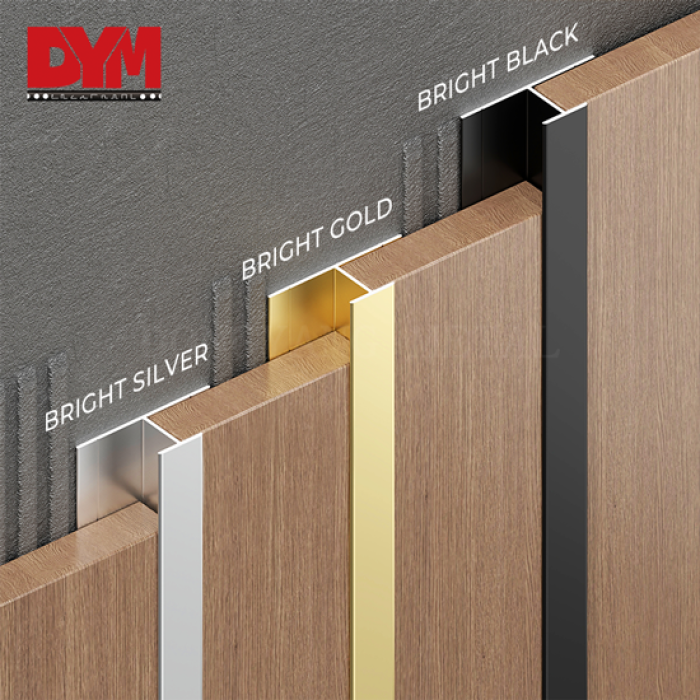

H-Shaped Aluminum Wall Panel Joining Trim

Share
Categories	Panel Profile
Brand	DYM Tile Trim Manufacturer
Model	DYM-P-003
Product Type	Wall Panel H Joint Profile
Profile Shape	H-Shaped (dual-slot symmetrical design)
Length	2.5m/ 2.7m or Customized
Colors	ilver, Matte Black, Champagne Gold, Custom RAL Colors, Various Wood Grains
Finish	Anodized / Wood Grain Transfer / Powder Coated / Brushed
Material	Aluminum Alloy 6063-T5
Application	Fully encases the cut edges of the panels
Thickness	0.8mm – 2.0mm (customizable)
Delivery Time	7-25 Days
Surface treatment	Anodized / Brushed / Matte / Polished / Powder Coated
OEM&ODM	CAD Drawing / Custom Profile / Color / Punching / Packaging
FOB port	foshan\shenzhen\guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union, T/T

Contact Now

Add to Wishlist

Detail Information

DYM - Aluminum Wall Panel Joining Trim

Product Overview

The H-Shaped Aluminum Wall Panel Joining Trim is a purpose-built aluminum connection profile designed specifically for flat panel-to-panel joints. Its cross-section takes the shape of an "H," featuring two symmetrical slots—one on each side. During installation, the edges of two adjacent wall panels are inserted into the two slots respectively, creating a flush, straight, and seamless joint. This trim not only covers the raw cut edges of the panels but also enhances the overall visual unity of the wall cladding system.

the H-shaped trim is exclusively designed for flat panel-to-panel butt joints—making it the most common and essential connection solution for large-area paneling projects.

Specifications

The H-shaped cross-section creates two receiving channels for the adjoining panel edges. This allows the profile to define the joint while covering the cut edges of both panels. Wall panel thicknesses and joining structures vary between manufacturers and applications. We provide custom aluminum extrusion for H-shaped wall panel joining profiles.

CODE	DYM-C-001	DYM-C-002	DYM-C-003	DYM-C-004	DYM-C-005
MM	6	8	10	12	15
G	0.121	0.123	0.126	0.129	0.134

Color Options or Customized

The aluminum H joining profile can be supplied with different architectural surface treatments. Custom colors can be developed for OEM and project requirements.

Matte Finish

Offers a low-reflective surface, ideal for a modern and minimalist look.

Polish Bright

Features a high-gloss surface, enhancing visual brightness and texture.

Brushed

Provides a fine-textured effect, adding tactile and visual depth.

Coating Texture

Available in various colors and textures to suit different design requirements.

Installation Guide

When wall panels are installed around an inside corner, the panel edges need to meet accurately to create a continuous surface. Directly joining two cut panel edges can leave visible gaps, uneven cuts or exposed substrate.

Applications of Wall Panel Inside Corner Trim

The aluminum H profile can be used with different types of decorative and architectural wall panels. Includes PVC / WPC / SPC / Fluted / Decorative Wall Panels
