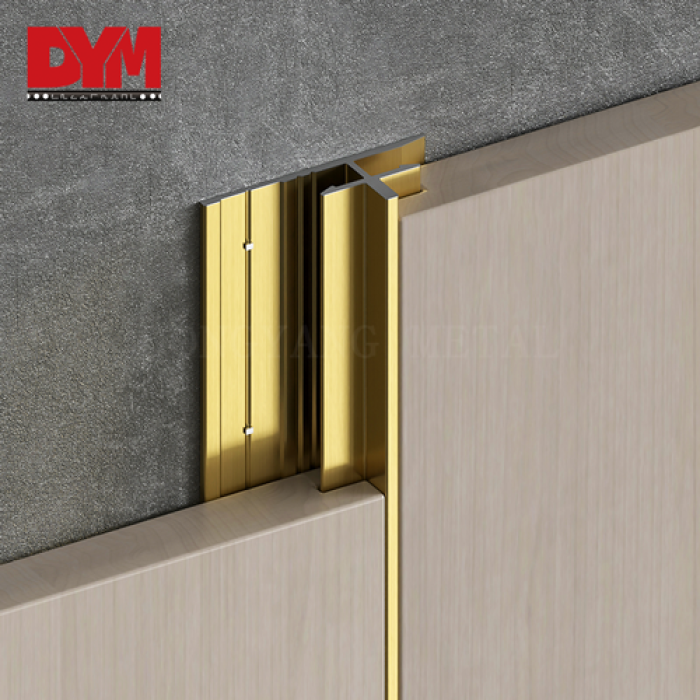

Wall Panel Slot Joining Profile

Share
Categories	Panel Profile
Brand	DYM Tile Trim Manufacturer
Model	DYM-P-136
Profile Structure	Slot / Channel / H-Shaped
Length	2.5m/ 2.7m or Customized
Colors	Silver, Matte Black, Champagne Gold, Custom RAL
Finish	Anodized / Powder Coated / Brushed
Material	Aluminum Alloy 6063-T5
Suitable Panels	PVC, WPC, SPC, Fluted & Decorative Wall Panels
Thickness	0.8mm – 2.0mm (customizable)
Surface treatment	Anodized / Brushed / Matte / Polished
OEM&ODM	Custom Profile / Size / Finish / Packaging
FOB port	foshan\shenzhen\guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union, T/T

Contact Now

Add to Wishlist

Detail Information

DYM - Wall Panel Slot Joining Profile

Product Overview

Wall panel slot joining profile is an aluminum extrusion designed to connect two adjacent wall panels through a dedicated slot or channel structure. The panel edges are inserted into the profile channels, creating a defined and consistent connection between adjoining panels while concealing the exposed panel edges at the joint.

Manufactured from 6063-T5 aluminum alloy, the profile provides a lightweight and dimensionally consistent solution for interior wall panel systems. Its slot-type construction can be customized according to the actual panel thickness, edge structure and required joint configuration. The slot structure allows the edges of two wall panels to be positioned within the profile, forming a controlled connection between adjacent panels.

Specifications

Slot-type aluminum joining profile for connecting adjacent wall panels through integrated receiving channels. Custom profile dimensions, lengths, colors and finishes are available for different wall panel systems.

CODE	DYM-C-001	DYM-C-002	DYM-C-003	DYM-C-004	DYM-C-005
MM	5	8	10	12	15
G	0.121	0.123	0.126	0.129	0.134

Color Options or Customized

The aluminum wall panel joining profile can be supplied with different surface treatments to coordinate with the wall panel material and overall interior design. Silver, black, gold and champagne are available for common architectural applications, while customized colors can be developed for branded wall panel systems and project specifications.

Matte Finish

Offers a low-reflective surface, ideal for a modern and minimalist look.

Polish Bright

Features a high-gloss surface, enhancing visual brightness and texture.

Brushed

Provides a fine-textured effect, adding tactile and visual depth.

Coating Texture

Available in various colors and textures to suit different design requirements.

Installation Guide

Position the slot joining profile at the planned panel joint and insert the edges of the two adjoining wall panels into the corresponding receiving channels. Check panel alignment and joint consistency before completing the final fixing of the wall panel system.

The slot width and depth should be matched to the actual panel thickness and edge structure to ensure proper installation.

Applications of Wall Panel Inside Corner Trim

The profile is suitable for PVC, WPC, SPC, fluted and decorative wall panels, making it a practical joining component for wall panel manufacturers, distributors, contractors and architectural project procurement. The slot structure allows the edges of two wall panels to be positioned within the profile, forming a controlled connection between adjacent panels.
